Mi-Sensor-1 The Mi-Sensor-1 is a multifunction battery powered wireless sensor that is capable of simultaneously monitoring Temperature, Motion/Shock, Button Press, Presence and one port function (Contacts or Water/Moisture or Light or Humidity or Volts AC or Volts DC or Capacitance or Amp Hours). Sensor notification is wirelessly sent to a Mi-Gateway-1 for delivery to an email account or smart phone. |

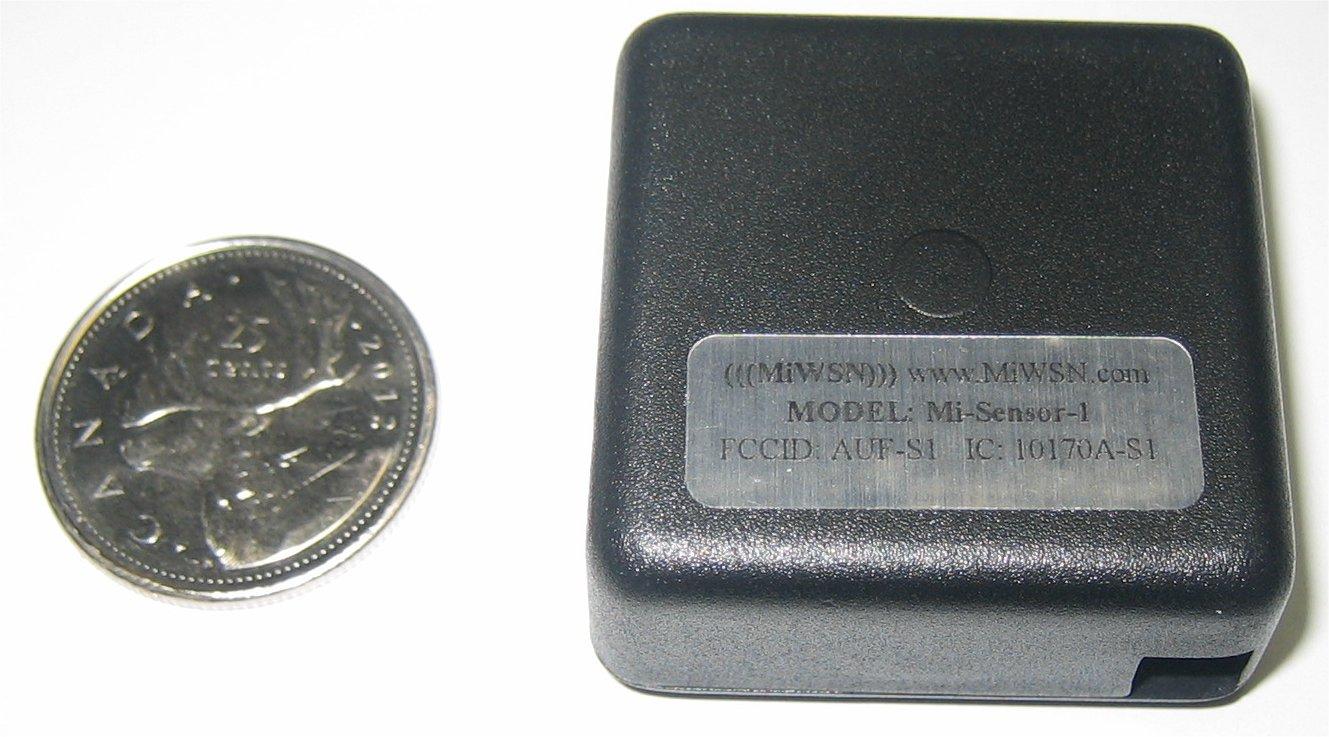

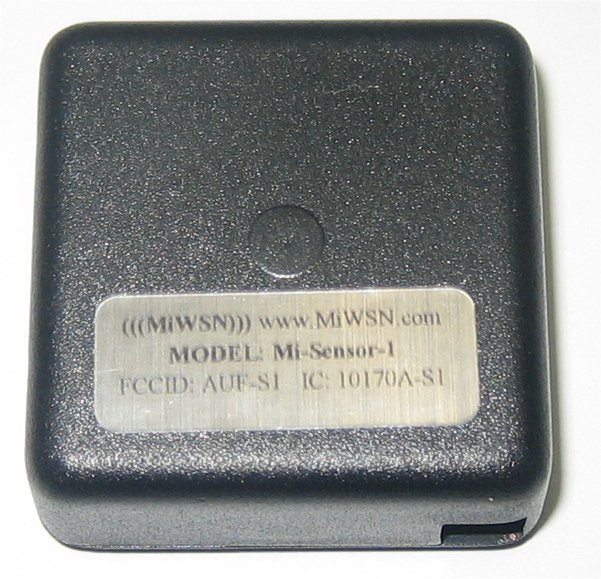

 View: Bottom - Top - Size |
Specifications
- User configurable notification of temperature high and/or low set
point exceeded. Temperature sensing range is –30C (-22F) to +60C
(+140F) in 1-degree increments, +/- 2C (4F) accuracy.
- User configurable notification of motion/shock present or not.
Motion/shock thresholds are user configurable from 0.06g to 6.24g in
99 steps.
- User configurable port function includes one of following;
- User configurable notification of moisture present or not across
the sensing wires.
- User configurable notification of contact closure or not. The ends of the sensing wires are shorted together or open.
- Light Level 0.1 to 6000 lux with external light element connected to port.
- Relative Humidity 0 to 100% (+/- 2% once calibrated) with external humidity element connected to port.
- Volts AC (+/- 300mVAC +/- 0.5%)
- Volts DC (0 to 300mVDC +/- 0.3%)
- Capacitance (relative counts 0=short, 17500-open)
- Amp Hours (0 to 100A +/-2% 60Hz with specified external
current transformer connected to port)
- User configurable notification of moisture present or not across
the sensing wires.
- User configurable notification of low battery condition. Upon
detecting a low battery condition the battery should be replaced.
- User configurable periodic reporting interval of 0 to 9999
minutes. When the period is set between 1 and 9999 minutes, the
sensor will send a report indicating the current state of its
sensing inputs.
- User configurable sensor name. The sensor may be given a name of
up to 8 characters. This name is used to identify the sensor in all
messages sent.
- User accessible test button for sending a test message and
configuring the sensor. At any time the test button may be
pressed to verify that the sensor is working correctly and is
within wireless range of the gateway. The test button is also
used to configure the sensor with the user configurable
parameters specified by the gateway.
- Moisture/Contact sensing wire may be up to 2m (6.5’) long.
- Operating range of –30C (-22F) to +60C (+140F)
- Sensors may be monitored by multiple gateways.
- Message encryption with user configurable key.
- 16 configurable RF channels in the 2.4Ghz operating frequency with
FCC and IC approvals.
- Integrated antenna with up to 100m (328’) outdoor and 20m (66’)
indoor operating range.
- Size 4cm (1.6”) x 4cm (1.6”) x 1.5cm (0.6”) and Weight 15g (0.5
ounces).
- User replaceable CR2032 battery with approximately one year life
depending on configuration.
- The Mi-Sensor-1 easily adheres to most surfaces using supplied
double-sided adhesive foam pads.
Product Contents
- Mi-Sensor-1
- One CR2032 Lithium battery
- 60 cm moisture sensing wire
- Two doubled sided adhesive foam pads
- Instructions
- Optional external Light, Humidity, or Amp Hour sensing
element
